The Details of M5 Snap Button

View:646      Date:2013-07-28 01:50:18 Share |

 Item No.: M5

The spring snap button

The available materials: Steel, Brass

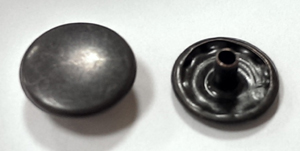

  • Name: CAP
  • The outside diameter of CAP: 12mm
  • The length of CAP's barrel: 4mm
  • The outside dameter of CAP's barrel: 2.6mm

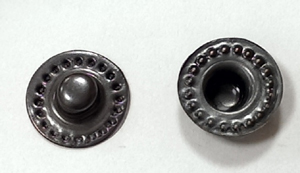

  • Name: SOCKET
  • The outside diameter of SOCKET: 11mm
  • The height (thickness) of SOCKET: 2.3mm







  • Name: STUD
  • The outside diameter of STUD: 10.7mm
  • The height (thickness) of STUD: 3.5mm

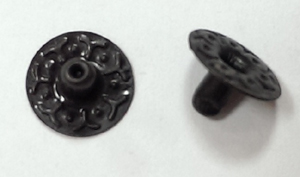

  • Name: POST
  • The outside diameter of POST: 10.7mm
  • The length of POST's barrel: 6.1mm
  • The outside dameter of POST's barrel: 3.3mm
