Item No.: M55

The ring snap button

The available materials: Steel, Brass, Stainless Steel 304

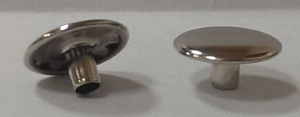

  • Name: CAP
  • The outside diameter of CAP: 15mm
  • The length of CAP's barrel: 6mm
  • The outside dameter of CAP's barrel: 4mm

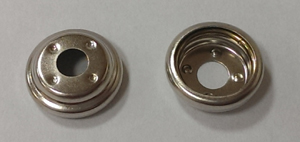

  • Name: SOCKET
  • The outside diameter of SOCKET: 13.5mm
  • The height (thickness) of SOCKET: 4.2mm









  • Name: STUD
  • The outside diameter of STUD: 14mm
  • The height (thickness) of STUD: 4.25mm

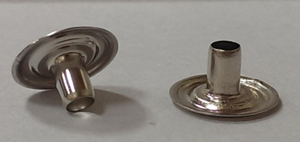

  • Name: POST
  • The outside diameter of POST: 13mm
  • The length of POST's barrel: 6mm
  • The outside dameter of POST's barrel: 4mm
