The Details of M56 Snap Button
Item No.: M56
The ring snap button
The available materials: Steel, Brass

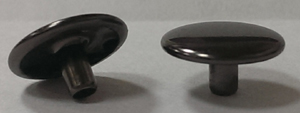

- Name: CAP
- The outside diameter of CAP: 12.5mm
- The length of CAP's barrel: 5.4mm
- The outside dameter of CAP's barrel: 3mm

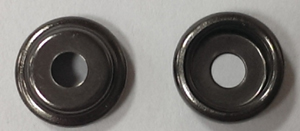

- Name: SOCKET
- The outside diameter of SOCKET: 11mm
- The height (thickness) of SOCKET: 3.65mm
- Name: STUD
- The outside diameter of STUD: 11mm
- The height (thickness) of STUD: 3.5mm

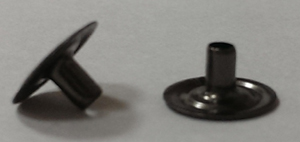

- Name: POST
- The outside diameter of POST: 11mm
- The length of POST's barrel: 4.9mm
- The outside dameter of POST's barrel: 3mm
