Item No.：M51
The press snap button
The available materials：Brass

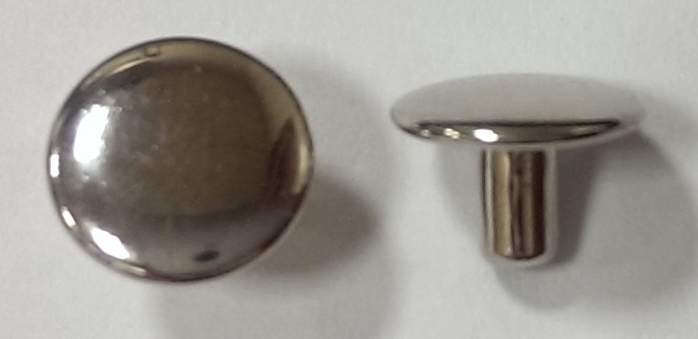

Name：CAP
The outside diameter of CAP：9mm
The length of CAP’s barrel：4.5mm
The outside dameter of CAP’s barrel：2.9mm

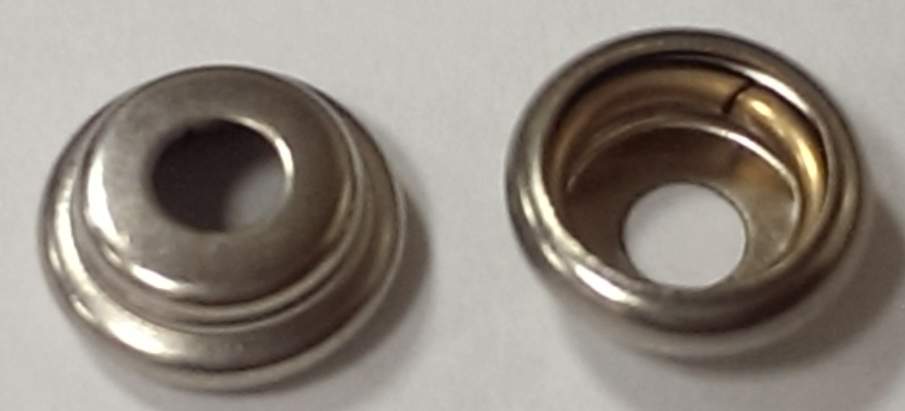

Name：SOCKET
The outside diameter of SOCKET：9.2mm
The height（thickness）of SOCKET：3.6mm

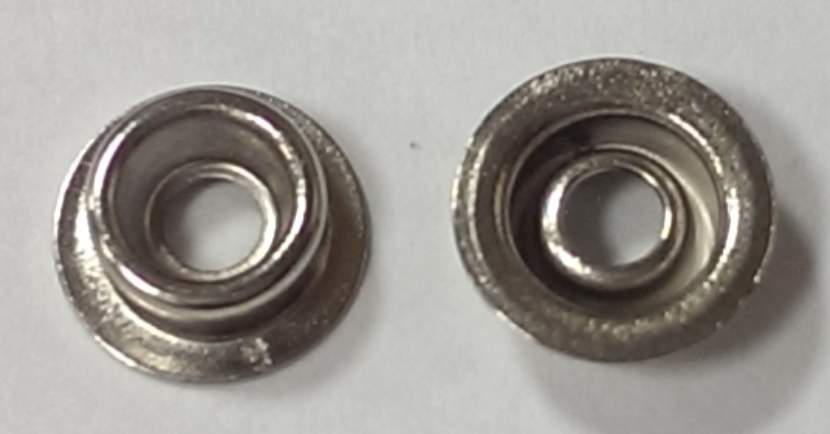

Name：STUD
The outside diameter of STUD：8mm
The height（thickness）of STUD：2.95mm

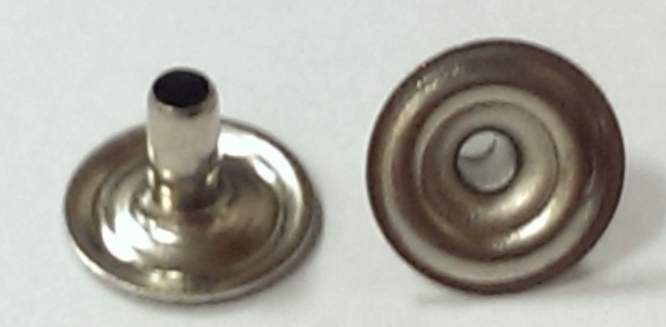

Name：POST
The outside diameter of POST：8mm
The length of POST’s barrel：4.85mm
The outside dameter of POST’s barrel：2.3mm
