The Details of M52 Snap Button

Home > News
View：1081      Date：2013-09-25 16:35:43 Share |



Item No.：M52
The press snap button
The available materials：Steel、Brass

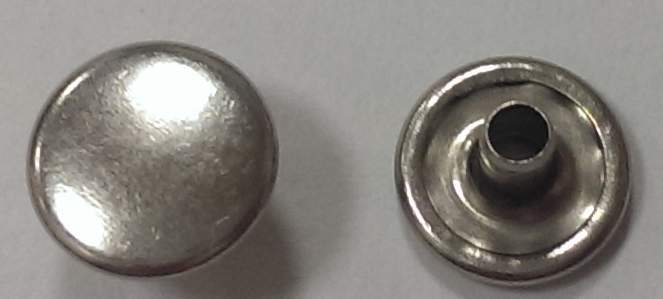

Name：CAP
The outside diameter of CAP：10mm
The length of CAP’s barrel：5.2mm
The outside dameter of CAP’s barrel：3mm

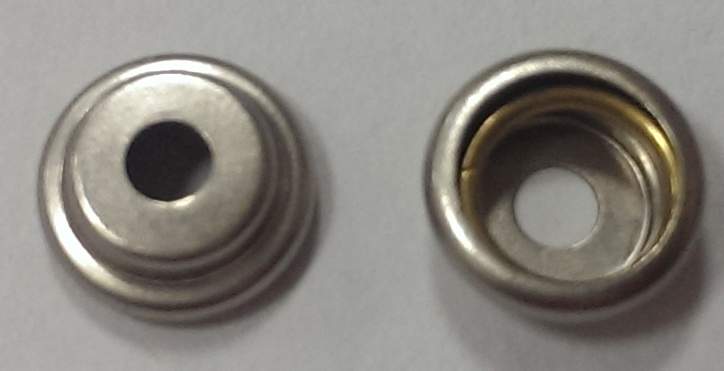

Name：SOCKET
The outside diameter of SOCKET：10.5mm
The height（thickness）of SOCKET：3.9mm

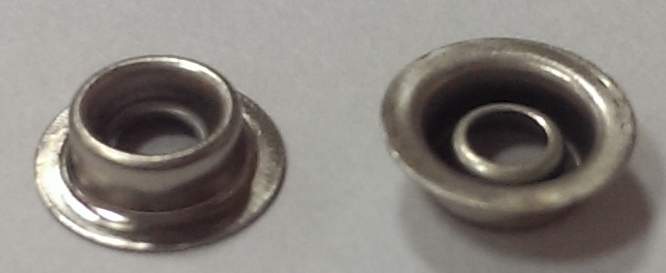

Name：STUD
The outside diameter of STUD：10.5mm
The height（thickness）of STUD：3.2mm

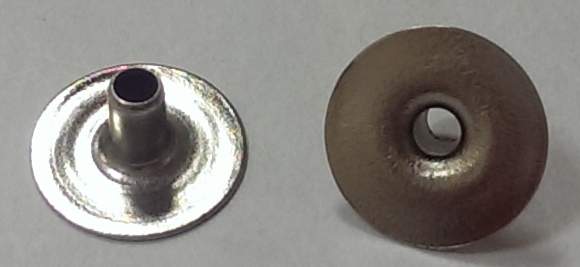

Name：POST
The outside diameter of POST：10.7mm
The length of POST’s barrel：4.85mm
The outside dameter of POST’s barrel：2.9mm
