The Details of M10 Snap Button

Home > News
View：982      Date：2013-09-03 15:47:39 Share |

Item No.：M10

The spring snap button

The available materials：Steel、Brass

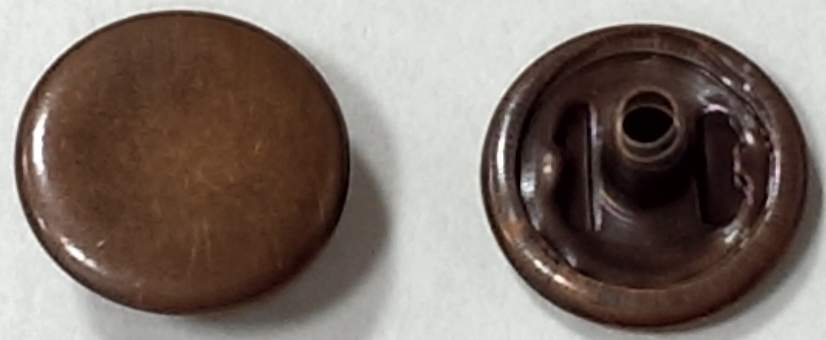

Name：CAP
The outside diameter of CAP：10mm
The length of CAP’s barrel：3mm
The outside dameter of CAP’s barrel：2.4mm

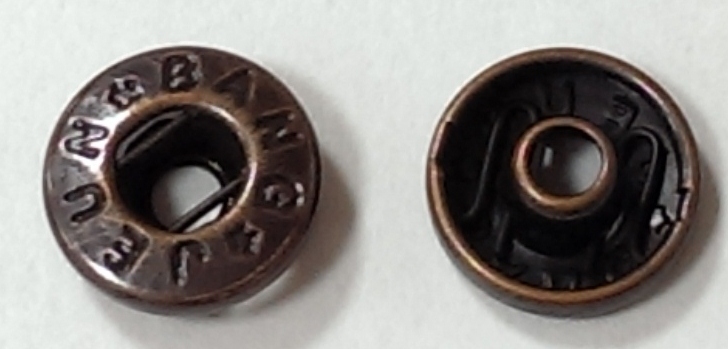

Name：SOCKET
The outside diameter of SOCKET：10mm
The height（thickness）of SOCKET：2.15mm

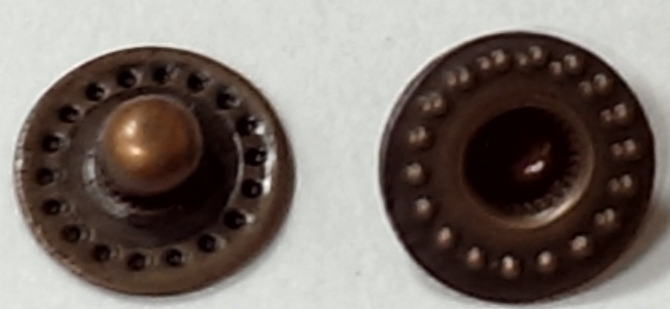

Name：STUD
The outside diameter of STUD：9mm
The height（thickness）of STUD：3.24mm

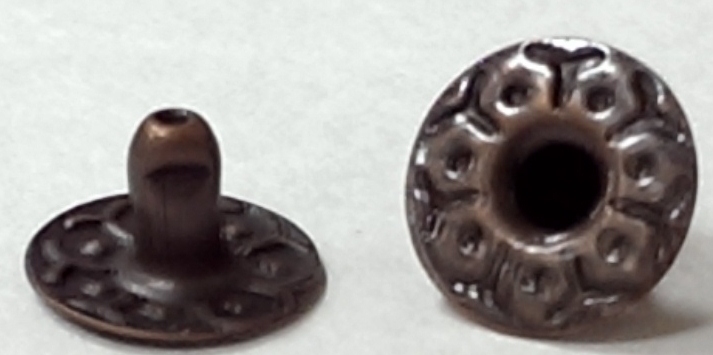

Name：POST
The outside diameter of POST：9mm
The length of POST’s barrel：4.85mm
The outside dameter of POST’s barrel：2.65mm
