The Details of M87 Snap Button
Item No.: M87
The spring snap button
The available materials: Steel, Brass

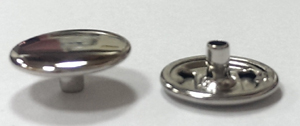

- Name: CAP
- The outside diameter of CAP: 15mm
- The length of CAP's barrel: 5mm
- The outside dameter of CAP's barrel: 3mm

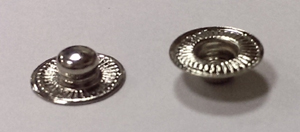

- Name: SOCKET
- The outside diameter of SOCKET: 13.5mm
- The height (thickness) of SOCKET: 2.45mm

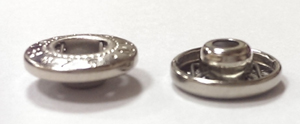

- Name: STUD
- The outside diameter of STUD: 11.5mm
- The height (thickness) of STUD: 3.98mm

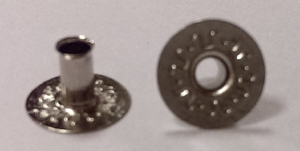

- Name: POST
- The outside diameter of POST: 12mm
- The length of POST's barrel: 7mm
- The outside dameter of POST's barrel: 3.75mm
