The Details of M6 Snap Button
Item No.: M6
The spring snap button
The available materials: Steel, Brass

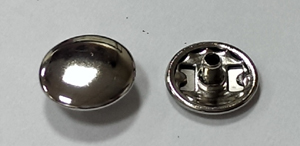

- Name: CAP
- The outside diameter of CAP: 12.5mm
- The length of CAP's barrel: 3.8mm
- The outside dameter of CAP's barrel: 2.65mm

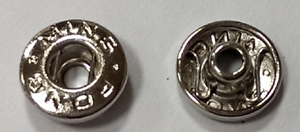

- Name: SOCKET
- The outside diameter of SOCKET: 12mm
- The height (thickness) of SOCKET: 2.3mm

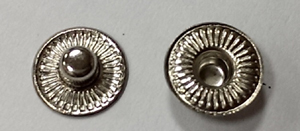

- Name: STUD
- The outside diameter of STUD: 10.7mm
- The height (thickness) of STUD: 3.8mm

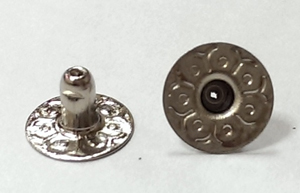

- Name: POST
- The outside diameter of POST: 10.6mm
- The length of POST's barrel: 6.1mm
- The outside dameter of POST's barrel: 3.3mm
